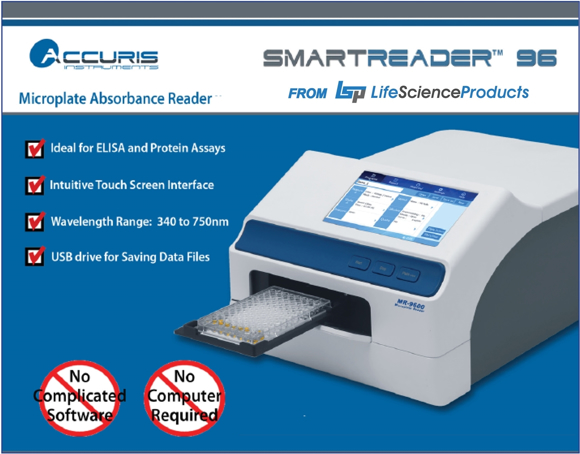

Accuris SmartReader 96 & 96-T Microplate Absorbance Readers

Accuris SmartReader 96 and 96-T
( 96-T unit with Microplate Incubation/Temperature mode)

Microplate Absorbance Readers (0.0 to 4.0000 Abs)
• No complicated software, No computer required
• Ideal for ELISA and Protein Assay
• Intuitive touch screen interface
• Wavelength range of 340nm to 750nm (405, 450, 492, 630nm filters included)
• USB drive for saving data files<8 channel vertical optical path, with zero dispersion
Integrated, multi-speed plate shaker

*MR9600-T model: Temperature controlled from +5°C above ambient to 50°C.

NOTE:
Additional Filters available, Printer available. INQUIRE.

Compatible with COVID-19 ELISA kits and others:

  • Eagle BioSciences Coronavirus COVID-19 IgM ELISA Assay Kit
  • EDI™ Novel Coronavirus COVID-19 ELISA Kit
  • RayBio® COVID-19 N-Protein Human IgG ELISA Kit

The Accuris SmartReader 96 and 96-T iarea welcome addition to any lab that is routinely measuring concentration or absorbance in 96 well plates.  The instrument’s 7 inch touch screen, intuitive software and graphical interface makes it easy to use as a standalone instrument (a separate computer and additional software is not required).

  • NOTE: 96-T model (temperature) includes Microplate Incubation capability
  • Intuitive, 7 inch color touch screen control panel
  • Filter based system with wavelength range from 340 to 750nm
  • Operates as a stand alone system, with USB flash drive drive for data transfer
  • Absorbance range: 0.0 to 4.0000 Abs
  • 8 channel vertical optical path, with zero dispersion
  • Integrated, multi-speed plate shaker

Specifications

Model
Accuris SmartReader 96
Accuris SmartReader 96-T (Temperature)
Control and Display
7 inch touch screen
(800 x 480 pixels)
Light Source
Quartz-halogen lamp 6V/10W
Wavelength range
340-750nm (405, 450, 492
and 630 nm filters included)
Half-Bandwidth of filter
3~9nm
Readout Range
0~4.000 Abs
Linearity (405nm)
0~2.000 Abs <+1%

0~4.000 Abs <+2%
Precision
CV</= 0.2% (0-3) Abs

CV</= 01.0% (3-4) Abs
Test Speed
<6 sec. for 96 well plate
Incubator
No
Shaking
3 modesl: slow, medium, fast
User Interface
Integrated software,
touch screen control
Storage
200 programs,
100,000 test records
Ports
USB ports for PC, printer,
mouse and flash drive
Dimensions
295x440x225 mm
11.6 x 17 x 8.75 inches
Weight
10 kg

The Accuris SmartReader 96 comes complete with 4 popular filters: 405,450,492,630nm and twenty six additional filters are available separately to cover a full range from 340 to 750nm.  The integrated filter wheel allows up to 8 filters to be loaded at once, and filters can be selected during programming

Use the touch screen, or connect a mouse for programming and operation.  The menu interface allows the user to choose the wavelength filter, set shaking parameters, enter details of the plate layout, and also choose the details for the reading protocol and data calculations.

Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons.  Kinetic calculations can be performed by setting multiple readings.

The SmartReader 96 is a convenient stand alone reader, all software and the programing system is incorporated into the electronics.  However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing.  A data port can be used for connecting a computer or basic printer.

The plate layout interface allows for quick and intuitive set up of a plate’s well contents.  The display shows a graphical representation of the 96 well plate, and the user can label each well as required for: “known standard”, “unknown sample”,  “blank well”, “QC control well”, “negative control”, “positive control”, or “empty”.  The interface allows highlighting and labeling multiple wells to save time.

Measurement data is available immediately on the screen after a reading, as well as interpretations, calculated analysis and curve fittings.

Ordering Information:

MR9600                                    Accuris SmartReader 96 Microplate Absorbance Reader, includes 40 5, 450, 492 and 530nm filters, 115V.
(Price, call for quote.)
  ACCESSORIES BELOW
(Shown at List Prices, Ask for Quote)

MR9600-TP Thermal Printer for MR-9600                       $270.00
MR9600-340 Filter for Accuris Microplate Reader, 340nm   $270.00
MR9600-380 Filter for Accuris Microplate Reader, 380nm   $270.00 (List Price)
MR9600-405 Filter for Accuris Microplate Reader, 405nm   $203.00
MR9600-415 Filter for Accuris Microplate Reader, 415nm   $203.00
MR9600-420 Filter for Accuris Microplate Reader, 420nm   $203.00
MR9600-450 Filter for Accuris Microplate Reader, 450nm   $203.00
MR9600-470 Filter for Accuris Microplate Reader, 470nm   $203.00
MR9600-490 Filter for Accuris Microplate Reader, 490nm   $203.00
MR9600-492 Filter for Accuris Microplate Reader, 492nm   $203.00
MR9600-510 Filter for Accuris Microplate Reader, 510nm   $203.00
MR9600-520 Filter for Accuris Microplate Reader, 520nm   $203.00
MR9600-532 Filter for Accuris Microplate Reader, 532nm   $203.00
MR9600-540 Filter for Accuris Microplate Reader, 540nm   $203.00
MR9600-546 Filter for Accuris Microplate Reader, 546nm   $203.00
MR9600-560 Filter for Accuris Microplate Reader, 560nm   $203.00
MR9600-562 Filter for Accuris Microplate Reader, 562nm   $153.00
MR9600-570 Filter for Accuris Microplate Reader, 570nm   $203.00
MR9600-578 Filter for Accuris Microplate Reader, 578nm   $203.00
MR9600-590 Filter for Accuris Microplate Reader, 590nm   $203.00
MR9600-595 Filter for Accuris Microplate Reader, 595nm   $203.00
MR9600-600 Filter for Accuris Microplate Reader, 600nm   $203.00
MR9600-620 Filter for Accuris Microplate Reader, 620nm   $203.00
MR9600-630

Filter for Accuris Microplate Reader, 630nm   $203.00

MR9600-646 Filter for Accuris Microplate Reader, 646nm   $203.00
MR9600-650 Filter for Accuris Microplate Reader, 650nm   $153.00
MR9600-663 Filter for Accuris Microplate Reader, 663nm   $203.00
MR9600-680 Filter for Accuris Microplate Reader, 680nm   $203.00
MR9600-690 Filter for Accuris Microplate Reader, 690nm   $203.00
MR9600-700 Filter for Accuris Microplate Reader, 700nm   $203.00
MR9600-750 Filter for Accuris Microplate Reader, 750nm   $203.00

________________________________________________

CLICK HERE,
for complete BenchTop Equipment Listing.

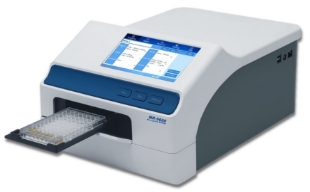

Accuris SmartReader 96, Microplate Absorbance Reader
Accuris SmartReader 96, Microplate Absorbance Reader (includes 405, 450, 492 and 630nm filters)
SKU: MR9600
$5,500.00
$4,675.00

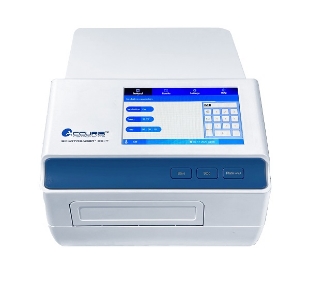

Accuris SmartReader 96-T, Microplate Absorbance Reader (with Temperatrure/Incubation)
Accuris SmartReader 96-T, Microplate Absorbance Reader with Temperatrure mode for Microplate Incubation (includes 405, 450, 492 and 630nm filters)
SKU: MR9600-T
$5,855.00
$4,976.75
Filter for Accuris Microplate Reader, 546nm
Filter for Accuris Microplate Reader, 546nm
SKU: MR9600-546
$202.00
$172.55
