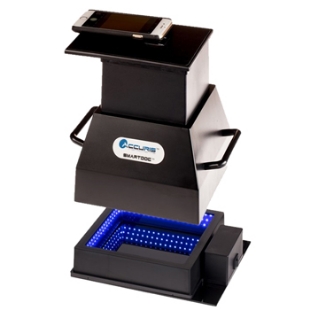

SmartDoc™, Use your smart phone or tablet for high quality imaging
The SmartDoc system is ideal for quickly obtaining quality images of your gels for your records or anaylsis. Most gel imaging systems cost thousands of dollars as they include a high resolution camera, color display, complicated control panel, computer & more. The SmartDoc uses the camera & computer that we already have...our smart phone.
- View and share images from your phone or table,
works with smart phones and tablets, including iphone™, ipad™ and Droid™ - Instantly share images (text, email or cloud)
- Adjustable focal distance (for optimum focus)
- Works with UV & blue light transilluminators
- Two filter options (for all common stains)
2 filter options for use with Ethidium Bromide and green dyes
Cat #E5000-535 Narrow Band Pass Filter, 535nm, for Green Stains
Cat #E5000-590 Narrow Band Pass Filter, 590nm, for Ethidium BromideThe SmartDoc system is ideal for quickly obtaining quality images of your gels for your records or anaylsis. Most gel imaging systems cost thousands of dollars as they include a high resolution camera, color display, complicated control panel, computer and more. The SmartDoc uses the camera and computer that we already have...our smart phone.
To use the SmartDoc, simply place the enclosure over your gel and transilluminator. Lay your smart phone or tablet onto the non-slip, rubber pad, and align the camera lens over the filter. Raising and lowering the platform allows optimization of focus and image size. Filters are available for compatibility with multiple light sources and dyes.
The Blue Light model includes high intensity blue LEDs to excite green dyes. This eliminates the need for hazardous and DNA-damaging UV light.
Images can be previewed on the device's display before capturing the picture. Images are easily shared, printed or transferred via text message, email or cloud sharing apps. Gel analysis software, such as the freeware found at www.gelanalyzer.com, can be used to analyze the image.
___________________________________
Technical Data
| Maximum Gel Size: | 15 x 15cm |
| Excitation Source: | High Intensity Blue LED |
| Photo Filter: | Orange PMMA, 12mm Aperture |
| Viewing Cover: | Orange PMMA, 18 x 18 cm |
| Phone Compatibility: | iPhone™, Android™, etc. (Smart phones and tablets with a camera) |
| Dimensions (W x D x H): | 9 x 7.5 x 8.6 in / 23 x 19 x 22 cm |
| Weight: | 2.6 Lbs (1.2 kg) |
| Electrical: | 100V to 230V, 50Hz to 60Hz |
| Warranty: | 2 years |
| Weight | 11 Lbs |
