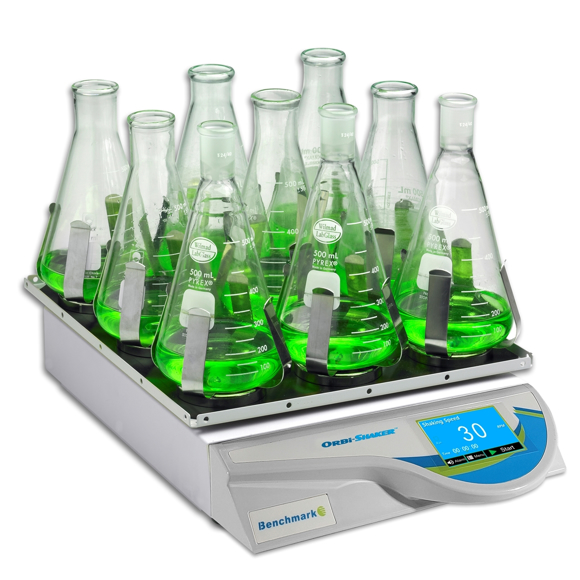

NOTE: The unit shown in the above photo is shown with the optional #BT3000-MR platform (Stainless Steel Universal Platform to accommodate magnetic MAGic Clamp optional accessories). All optional components are listed below: MAGic Clamp type or Dedicated type platforms, MAGic magnetic clamps, and tube racks (sold separately).
___________________________________________________________________________________
Large, Orbi-Shaker (BT3001)
Equipped with Standard Aluminum 13"x12" Platform with rubber mat platform, 1 unit
• Features Touch Screen Control Panel
• Ideal for tissue culture flasks, petri dishes, and staining trays
• Perfectly circular 19mm orbit for aeration and mixing
• Digital speed control up to 300 rpm
The powerful Orbi-Shaker is capable of mixing a 14 lb load capacity up to speeds as high as 3000 rpm. The standard platform (included with BT3000) features a non-slip, rubber coated surface, ideal for tissue culture flasks, Petri dishes and staining trays.
Our MAGic Clamp platform and accessories (patent pending) are also available (shown below) for use with Erlenmeyer flasks, test tube racks, and uncommon size vessels. The unique, magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes.
Specifications
| Speed: | Variable, 30 to 300 rpm |
| Orbit: | 19 mm |
| Max. Capacity: | 5 x 1L (14 lbs / 6 kg) |
| Speed Increment: | 1 rpm |
| Platform Dimensions: | 13 x 12 in./ 33 x 30 cm (Included) 14 x 12 in./ 35 x 30 cm (MAGic Clamp) |
| Operating Temp. Range | +4 to +65°C |
| Dimensions: (w x d x h) | 11 x 13 x 3 in./ 28 x 33x 7.5 cm |
| Weight: | 25 lbs (11.25kg) |
| Electrical: | 120V or 230V, 50-60Hz 600W |
| Warranty: | 2 Years |
_________________________________________________________________
Optional Platforms and Accessories
(CLICK HERE for Prices & Details)
MAGic Clamp Universal Platform (Stainless Steel)
BT3000-MR MAGic Clamp Universal Platform for Erlenmeyer Flasks and Tube Racks (14"x12")
(Attaches to top of Orbital Shaker's supplied standard Platform using 4 thumb-screws in each corner)
MAGic Clamp Flask Clamps for BT3000-MR platform (magnetized bottom)
H1000-MR-50 50ml clamp for MAGic Clamp Universal Platform (Max. 32 flasks)
H1000-MR-125 125ml clamp for MAGic Clamp Universal Platform (Max. 24 flasks)
H1000-MR-250 250ml clamp for MAGic Clamp Universal Platform (Max. 14 flasks)
H1000-MR-500 500ml clamp for MAGic Clamp Universal Platform (Max. 9 flasks)
H1000-MR-1000 1000ml clamp for MAGic Clamp Universal Platform (Max. 5 flasks)
H1000-MR-2000 2000ml clamp for MAGic Clamp Universal Platform (Max. 2 flasks)
H1000-MR-MP Microplate/Deepwell plate clamp for MAGic Clamp Platform (Max. 6 plates)
MAGic Clamp Tube Racks, Bottle Rack (magnetized bottom)
H1000-MR-T1550 Tube Rack for 12x50ml and 21x15ml conical tubes (Max. 2 Tube Racks)
H1000-MR-T15 Tube Rack for 32x15ml conical tubes (Max. 3 Tube Racks)
H1000-MR-T50 Tube Rack for 21x50ml conical tubes (Max. 3 Tube Racks)
H1000-MR-T600 Bottle Rack for 4x500/600ml bottles (Max. 1 Tube Rack)
_____________________________________________________________________________
Standard Dedicated Aluminum Platforms (NOT magnetized; Original style platforms)
H1000-P-125 Dedicated platform (13"x12") for 12 x 125ml Erlenmeyer Flasks
H1000-P-250 Dedicated platform (13"x12") for 8 x 250ml Erlenmeyer Flasks
H1000-P-500 Dedicated platform (13"x12") for 5 x 500ml Erlenmeyer Flasks
H1000-P-MP Dedicated platform (13"x12") for 4 standard microplates or 4 deepwell plates
H1000-P-SP Spring Rack platform (13"x12") for uncommon vessels and containers
