UV Clave™ Ultraviolet Sterilization Chamber, & Accessories

UV Clave™ Ultraviolet Chamber
• Multiple UV-C lamps and reflective walls provide 360° irradiation of chamber contents
• Inactivates DNA, RNA, Viruses & Bacteria on exposed surfaces
• UV-C transparent shelf eliminates blind spots
• Auto-shutoff when door is opened
• Perfect for eliminating carryover in PCR reactions

  • Improves quality of PCR research by reducing potential contaminants
  • Multiple lamps and reflective chamber walls provide true 360° irradiation;
  • Proprietary UVC transparent shelf, eliminates potential for missed coverage (blind spots)
  • Inactivates DNA, RNA, viruses & bacteria on PCR vessels
  • Adjustable cycle time

_______________________________________________________________________________

Specifications

UV Bulbs:6 x 4W
UV Wavelength:         254nm
UV Intensity:+500µW/cm² (center of chamber)
UV Dosage:600mJ/cm2 (20 min cycle)
UV Timer:5-20 min. (5 min. increments)
Heater Timer:30 -120 min. (30 min. increments)
Heater Temp.:55°C
Internal Dims.:8.5x10.1x12.2 in / 21.6x25.6x31.8 cm
External Dims.:11.5x10.5x15.7 in / 29.2x26.7x40 cm
Max. Height:30 cm
Shelf Dims.:10 x 8 in / 25.4 x 20.3 cm
Shelf Material:2 Stainless steel wire / 1 UV-C transparent
Weight:11lbs. (5kg)
Electrical:120V 60HZ or 230V 50HZ - 110W
Warranty:2 Years

_________________________________________________
Short-wave UV light is an effective method for the disinfection of surface DNA, RNA and microorganisms. With the UVClave chamber, highly focused UV irradiation is used to disinfect tools, vessels and other research items, eliminating up to 99% of surface contamination.

Unlike most UV chambers, the UV Clave includes powerful UV-C bulbs on both the top and bottom of the chamber. When combined with our proprietary shelf that allows for >90% of UV-C light transmission and highly reflective chamber walls, the result is true 360° exposure with no blind spots.

Exposure time is adjustable. An optional heating cycle can be added to assist in drying items that may have been washed or chemically disinfected prior to insertion.

To protect users, the integrated auto shut-off prevents illumination when the door is open. Optional indicators are available to test for proper exposure levels.
_____________________________________________________________________________

This product is designed for RESEARCH USE ONLY.
Not intended for clinical use.

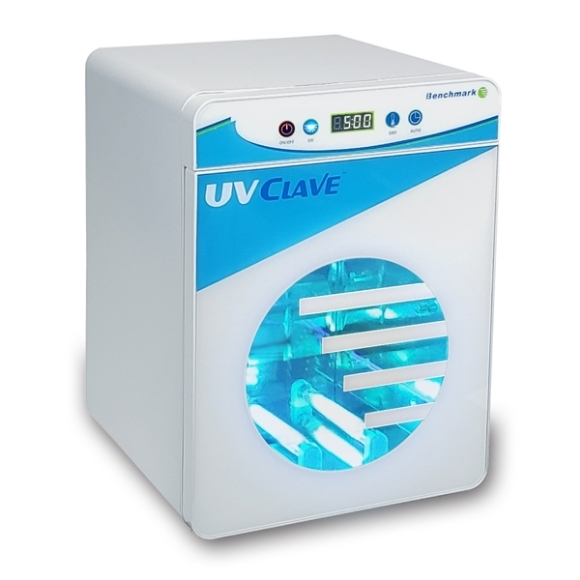

Picture of Benchmark Scientific UV Clave Ultraviolet Chamber
Benchmark Scientific UV Clave Ultraviolet Chamber
Benchmark Scientific UV Clave Ultraviolet Chamber
• Improves quality of PCR research by reducing potential contaminants
• Multiple lamps and reflective chamber walls provide true 360° irradiation
• Proprietary UVC transparent shelf, eliminates potential for missed coverage (blind spots)
• Inactivates DNA, RNA, viruses & bacteria on PCR vessels
• Adjustable cycle time
SKU: B1450
Old price: $596.80
$507.25
UV-C Indicator Cards, 25/pack
UV-C Indicator Cards, 25/pack
SKU: B1450-IC
Old price: $102.70
$87.20
UV-C Indicator Stickers, 40/pack
UV-C Indicator Stickers, 40/pack
SKU: B1450-ISS
Old price: $91.10
$77.45
OPTIONAL UVC TRANSPARENT SHELF
Optional UVC Transparent Shelf
SKU: B1450-SH-UV
Old price: $166.60
$158.20
OPTIONAL Wire SHELF
Optional Wire Shelf for UV Clave
SKU: B1450-SH
Old price: $45.00
$38.20
