• Designed for use in C02 incubators and other extreme environments
• Remote controlled, adjust settings from outside the chamber
• Horizontally circular 19mm orbit for aeration & mixing
• Instantly exchange flask clamps with MAGic Clamp™ accessories

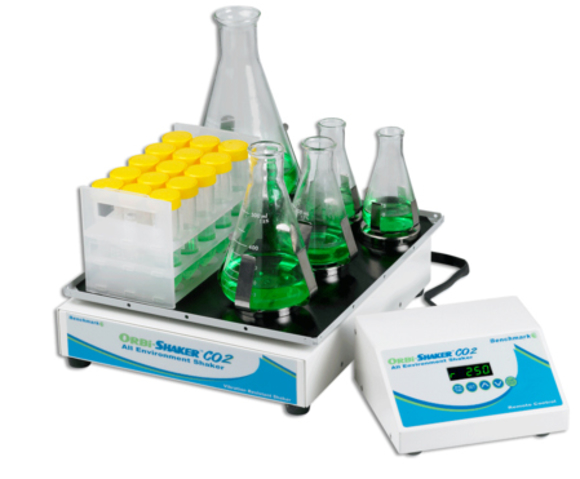

  The new Orbi-Shaker™ CO2 unit is designed for shaking, mixing and aeration applications in extreme environments, including CO2 incubators (using the remote external control unit). The shaker is connected via the remote with a long 'umbilical' electrical cord that reaches from inside the CO2 incubator to outside the CO2 incubator. A portal on the side-wall of the incubator is normally the routing for the cord.  Therefore, the shaker (placed on the inside of the CO2 incubator and the remote on the outside of the incubator), the controlling of incubator can be accomplished without opening the door of the CO2 incubator.  The Orbi-Shaker CO2 unit can withstand temperatures from 0 to 60°C and humidity levels up to 100%.

  To avoid contamination, unintentional release of gas or deviations from protocol, both speed and time are set via the included remote control module.  The remote controller allows the user to set and adjust the shaker settings without opening the chamber door(s).

The instrument is supplied with a 13" x 12” platform (made from aluminum) with a non-slip rubber mat.

Note, because the supplied 13" x 12" platform is made from aluminum and can not be used with our magnetic accessories, two optional steel platforms (available in a small and a large size) are designed to attach (or piggy-back) to the top of the supplied 13" x 12" aluminum platform with screws.  Corresponding magnetic MAGic Clamp accessories are available that easily and magnetically clamp to the optional steel platforms, as listed (sold separately).  Separate magnetic MAGic Clamp Erlenmeyer flasks units, and magnetic test tube and conical tube racks (sold separately).

This unique magnetic attachment method has been widely recognized as the easiest way to instantly change between flask clamps of different sizes.
_____________________________________

Technical Data:

Speed Range:                        30 to 300 rpm

Speed Increment:                  1 rpm

Orbit:                                      19mm (3/4”)

Max. Capacity:                       2x2L  or 6 kg

Platform Dimensions:            13x12 in. / 33 x 30 cm

  Also available:

  Magic Clamp Platform (SM): 9.5 x 11.5 in. / 24 x 29.5cm

  Magic Clamp Platform (LG): 14x12 in. / 35 x 30 cm

Exterior Dimensions:

  Shaker:                               11.9x13.4x3.5 in. / 30x34x9 cm

  Remote:                              7x6.7.4x3.5 in. / 18x17x7 cm

  Cord Length: Control:         60.5 in. / 154cm

Weight:                                 25 lbs. / 11.25 kg

Operating Temperature:       4 to 65°C

Electrical:                             120V or 230V, 50-60Hz*

___________________________________________________________________

MAGic Clamp™ Accessories

Optional Platforms - use with magnetic-bottom MAGic Clamps (listed below)
These optional 'Steel' platforms are designed to be attached (piggy-backed) to the supplied 13"x12" 'Aluminum' platform.

HR1000-MR             11½" x 9½" Steel Universal Platform

                                 (Designed to be attached with screws to supplied 13" x 12" aluminum platform)

                                 This Steel Platform allows magnetic-bottom MAGic Clamp™ Flask Holders and Tube Racks to easily attach.


BT3000-MR             14" x 12" Steel Universal Platform  (Note: make sure this platform can fit into the door of your incubator.)

                           (Designed to be attached with screws to supplied 13" x 12" aluminum platform)

                          This Steel Platform allows magnetic-bottom MAGic Clamp™ Flask Holder Clamps and Tube Racks to easily attach.

Magnetic-bottom MAGIC Clamps - for Erlenmeyer Flasks           Maximum (H1000-MR)           Maximum (BT3000-MR)

H1000-MR-50           MAGic Clamp™  50ml Flask Holder Clamp                                                  20                                                 30
H1000-MR-125         MAGic Clamp™ 125ml Flask Holder Clamp                                                 12                                                 24
H1000-MR-250         MAGic Clamp™ 250ml Flask Holder Clamp                                                  8                                                  14
H1000-MR-500         MAGic Clamp™ 500ml Flask Holder Clamp                                                  5                                                   9
H1000-MR-1000       MAGic Clamp™ 1 liter Flask Holder Clamp                                                   4                                                   5
H1000-MR-2000       MAGic Clamp™ 2 liter Flask Holder Clamp                                                   1                                                   2

Magnetic-bottom MAGic Clamps - for Tube Racks
H1000-MR-T1550     MAGic Clamp™ Tube Rack, 15ml conical tubes, 32x15ml/rack              2 racks                                          3 racks
H1000-MR-T             MAGic Clamp™ Tube Rack, 50ml conical tubes, 15x50ml/rack              2 racks                                          3 racks

H1000-MR-T50         MAGic Clamp™ Combi-Tube Rack, 21x15 & 12x15ml/rack                    2 racks                                          2 racks

H1000-MR-T600       MAGic Clamp™ Tube/Bottle Rack, 4x500/600ml conical bottles/rack     1 rack                                            2 racks
H1000-MR-T15H      MAGic Clamp™ Tube Rack, 12x1.5-2.0ml microtubes, horizontal           2 racks                                          4 racks

H1000-MR-T150H    MAGic Clamp™ Tube Rack, 4x15ml tubes, horizontal                             4 racks                                          6 racks

H1000-MR-T500H    MAGic Clamp™ Tube Rack, 2x50ml tubes, horizontal                             4 racks                                          6 racks
