Quick-Read™ Precision Urinalysis Microscope Slides

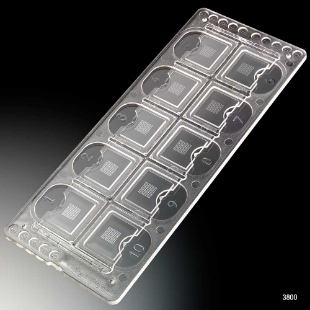

Catalog #QR-3800
The Quick-Read™ Precision 'Square' Grid Urinalysis Microscope Slide is designed to provide accuracy, uniformity and safety in the microscopic examination of urinary sediment. Made from optically clear acrylic for optimal viewing, the slide consists of ten chambers. Each chamber has a grid with 81 well defined, pre-measured squares. Each pre-measured square holds a specific volume of urinary sediment which facilitates the convenient and rapid microscopic examination of the cellular elements in each specimen.

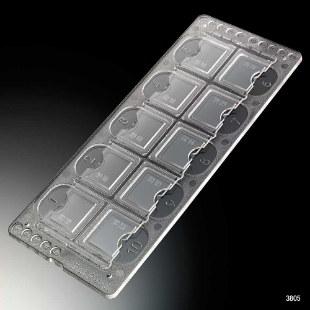

Catalog #QR-3805
The Quick-Read™ Precision 'Circle" Cell Urinalysis Microscope Slide is designed to provide accuracy, uniformity and safety in the microscopic examination of urinary sediment. Made from optically clear acrylic, the slide features 10 chambers with integrated coverslips. Within each chamber there are 18 circles that are all together visible at 100x magnification. These premeasured circles contain specific volumes of urinary sediment within its circumference that allows for the easy calculation of cellular elements present in 1mL of urine.
The Quick-Read™ system is a combination slide and coverslip of optically clear acrylic with ten separate chambers, each holding a standard volume of 6.3uL. Ten processed and stained specimens can be read at a time. Each chamber contains 18 premeasured circles that contain specific volumes of urinary sediment within its circumference. This facilitates a convenient and rapid microscopic examination of the cellular elements in each specimen.
To apply the sample to the chamber, place a drop of well-mixed sediment (using Quick-Prep™, a tube and pipette system that isolates 1mL of urine sediment for microscopic examination) into the scalloped area of a numbered chamber on the slide. Capillary action provides uniform distribution of sediment into the viewing chamber. Each chamber has overflow wells for excess urine to prevent cross contamination. Individual slides and specimens can be identified by marking the appropriate numbers on the extreme left and right side of the unit with your own identifying code using a pencil or other marking device. The use of Quick-Read™ provides accuracy, uniformity and safety in the microscopic examination of urinary sediment.
___________________________________________________________________________________________

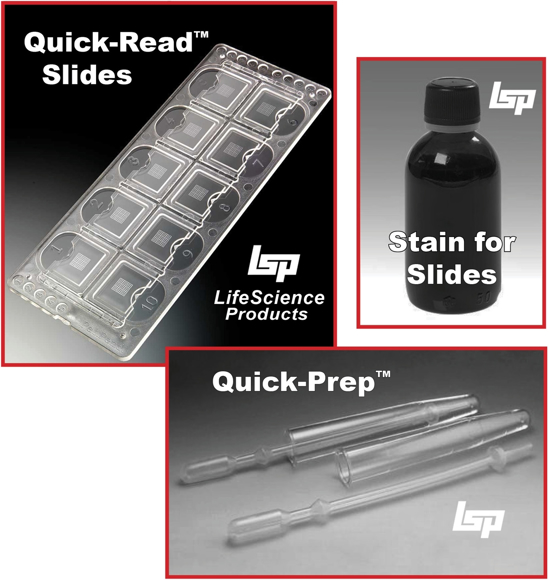

Quick-Prep™ Urinalysis Kits
Quick-Prep™ is a tube and pipette system that isolates 1mL of urine sediment for microscopic examination. The kit includes our specially designed transfer pipette and 12mL urine centrifuge tube. This system is used to isolate 1mL of urine sediment stain and allow easy pour off of the balance. Quick-Prep has been designed for use with our Quick-Read precision urinalysis microscope slides.
Instructions for use: 1. Add 10mL of urine to our 12mL Quick-Prep tube. 2. Centrifuge for 5 minutes at 1500 rpm. 3. Insert a Quick-Prep pipette into the tube sealing off 1mL of sediment on the bottom of the tube. 4. Hold the bulb of the pipette against the wall of the tube and decant 9mL of the supernate, leaving 1mL of sediment at the bottom of the tube. 5. Squeeze and release the bulb of the Quick-Prep pipette to draw up the sediment. 6. Place a drop of the well mixed sediment into the scalloped area of a numbered chamber on the Quick-Read Precision Cell slide.
___________________________________________________________________________________________
Urine Stain
Sternheimer Malbin Urine Sediment Stain
